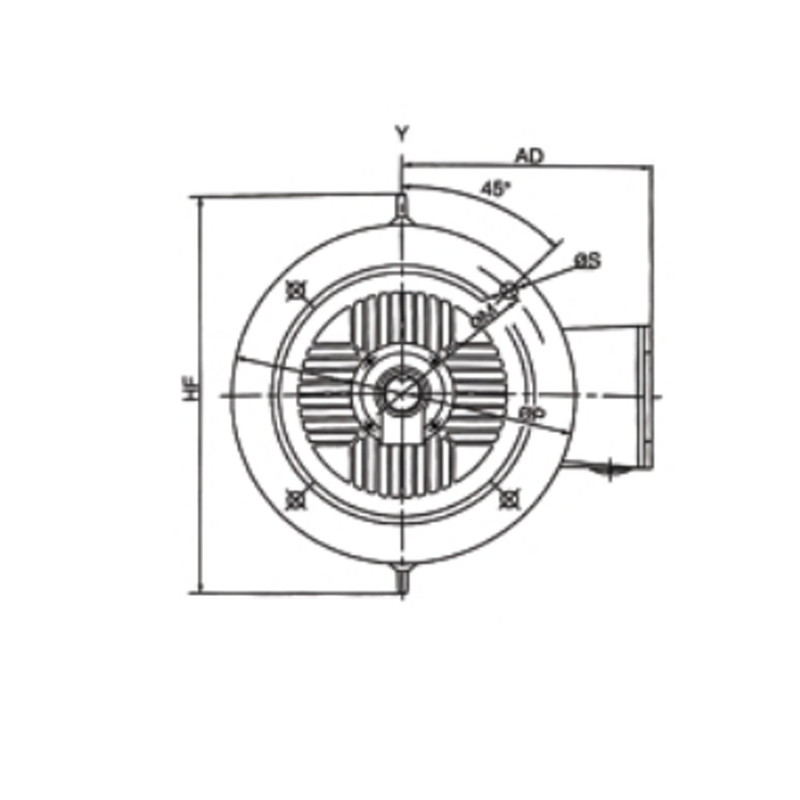

立式安裝、機座不帶底腳、端蓋有凸緣（通孔）的電動機VI)Frame without foot,end shield with flange(VI)
如需更多信息，請發送電子郵件或撥打我們的熱線電話
立式安裝、機座不帶底腳、端蓋有凸緣（通孔）的電動機VI)Frame without foot,end shield with flange(VI)
如需更多信息，請發送電子郵件或撥打我們的熱線電話
| 機座號Frame | 極數 Ploes | 安裝尺寸Mounting dimension(mm) | 外形尺寸Overall dimensions(mm) | |||||||||||||
| D | E | F | G | M | N | P | R | S | T | 孔數 | AC | AD | HD | L | ||
| Holes | ||||||||||||||||
| 180M | 2.4.6.8 | 48 | 110 | 14 | 42.5 | 300 | 250 | 350 | 0 | 18.5 | 5 | 4 | 390 | 285 | 505 | 825 |
| 180L | 2.4.6.8 | 48 | 110 | 14 | 42.5 | 300 | 250 | 350 | 18.5 | 5 | 4 | 390 | 285 | 505 | 845 | |
| 200L | 2.4.6.8 | 55 | 110 | 16 | 49 | 350 | 300 | 400 | 18.5 | 5 | 4 | 445 | 320 | 565 | 940 | |
| 225S | 4.8 | 60 | 140 | 18 | 53 | 400 | 350 | 450 | 18.5 | 5 | 8 | 495 | 350 | 625 | 945 | |
| 225M | 2 | 55 | 110 | 16 | 49 | 400 | 350 | 450 | 18.5 | 5 | 8 | 495 | 350 | 625 | 945 | |
| 4.6.8 | 60 | 140 | 18 | 53 | 400 | 350 | 450 | 18.5 | 5 | 8 | 495 | 350 | 625 | 975 | ||
| 250M | 2 | 60 | 140 | 18 | 53 | 500 | 450 | 550 | 18.5 | 5 | 8 | 550 | 390 | 670 | 1095 | |
| 4.6.8 | 65 | 140 | 18 | 58 | 500 | 450 | 550 | 18.5 | 5 | 8 | 550 | 390 | 670 | 1095 | ||
| 280S | 2 | 65 | 140 | 18 | 58 | 500 | 450 | 550 | 18.5 | 5 | 8 | 630 | 435 | 745 | 1155 | |
| 4.6.8 | 75 | 140 | 20 | 67.5 | 500 | 450 | 550 | 18.5 | 5 | 8 | 630 | 435 | 745 | 1155 | ||
| 280M | 2 | 65 | 140 | 18 | 58 | 500 | 450 | 550 | 18.5 | 5 | 8 | 630 | 435 | 745 | 1195 | |
| 4.6.8 | 75 | 140 | 20 | 67.5 | 500 | 450 | 550 | 19 | 5 | 8 | 630 | 435 | 745 | 1195 | ||
| 315S | 2 | 65 | 140 | 18 | 58 | 600 | 550 | 660 | 24 | 6 | 8 | 645 | 530 | 900 | 1280 | |
| 4.6.8 | 80 | 170 | 22 | 71 | 600 | 550 | 660 | 24 | 6 | 8 | 645 | 530 | 900 | 1400 | ||
| 315M | 2 | 65 | 140 | 18 | 58 | 600 | 550 | 660 | 24 | 6 | 8 | 645 | 530 | 900 | 1310 | |
| 4.6.8 | 80 | 170 | 22 | 71 | 600 | 550 | 660 | 24 | 6 | 8 | 645 | 530 | 900 | 1430 | ||
| 315L | 2 | 65 | 140 | 18 | 58 | 600 | 550 | 660 | 24 | 6 | 8 | 645 | 530 | 900 | 1310 | |
| 4.6.8 | 80 | 170 | 22 | 71 | 600 | 550 | 660 | 24 | 6 | 8 | 645 | 530 | 900 | 1430 | ||
| 355M | 2 | 75 | 140 | 20 | 67.5 | 740 | 680 | 800 | 24 | 6 | 8 | 710 | 655 | 1010 | 1640 | |
| 4.6.8 | 95 | 170 | 25 | 86 | 740 | 680 | 800 | 24 | 6 | 8 | 710 | 655 | 1010 | 1670 | ||
| 355L | 2 | 75 | 140 | 20 | 67.5 | 740 | 680 | 800 | 24 | 6 | 8 | 710 | 655 | 1010 | 1640 | |
| 4.6.8 | 95 | 170 | 25 | 86 | 740 | 680 | 800 | 24 | 6 | 8 | 710 | 655 | 1010 | 1670 | ||
| 3551 3552 3553 | 2 | 80 | 170 | 22 | 71 | 840 | 780 | 900 | 24 | 6 | 8 | 900 | 760 | 1220 | 1920 | |
| 4.6.8 | 110 | 210 | 28 | 100 | 840 | 780 | 900 | 24 | 6 | 8 | 900 | 760 | 1220 | 1970 | ||
