Jiawo Electromechanical series

A manufacturer and exporter specializing in the production of high pressure cleaning machines and motors.

Current location: home >> Jiawo Electromechanical series

Frame without foot end shield with flange(V1)

Frame without foot end shield with flange(V1)

Frame without foot end shield with flange(V1)

Frame without foot end shield with flange(V1)

Frame without foot end shield with flange(V1)

Frame without foot end shield with flange(V1)

For more information, please send an email or call our hotline

jiawofanny@outlook.com

Product description

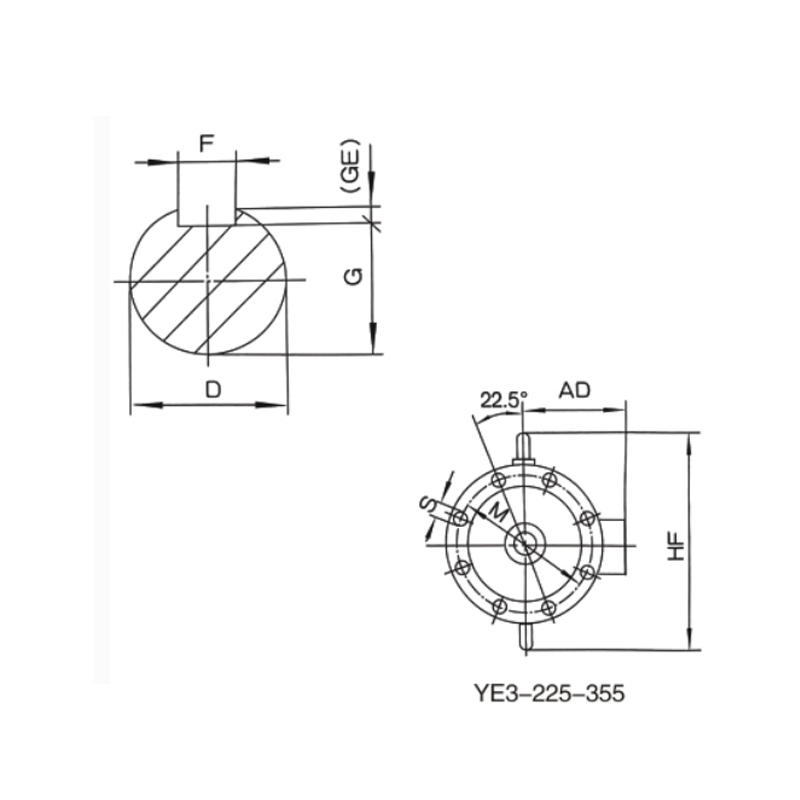

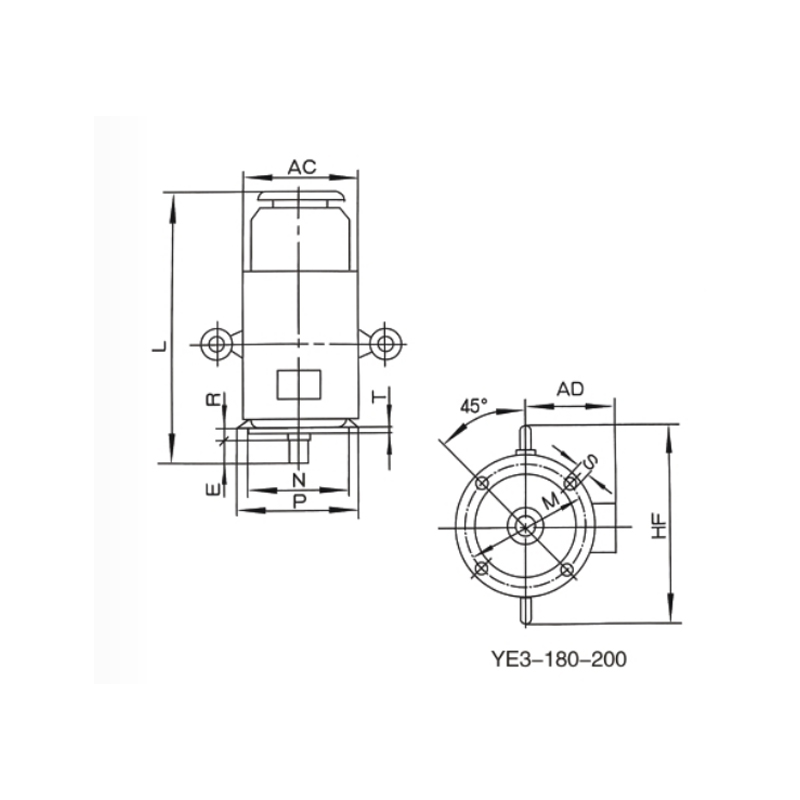

Frame without foot end shield with flange(V1)
Frame	Ploes	D	E	F	G	M	N	P	R	S	T	Holes	AC	AD	HF	L
80M	2.4.6.8	19	40	6	15.5	165	130	200	0	12	3.5	4	175	145	/	355
90S		24	50	8	20								195	165		410
90L																440
100L		28	60		24	215	180	250		14.5	4		215	180	245	485
112M													240	190	265	520
132S		38	80	10	33	265	230	300					275	210	315	560
132M																610
160M	2.4.6.8	42	110	12	37	300	250	350		18.5	5		330	255	385	720
160L																750
180M		48		14	42.5								380	280	430	800
180L																850
200L		55		16	49	350	300	400					420	305	480	860
225S	4.8	60	140	18	53	400	350	450				8	470	335	535	955
225M	2	55	110	16	49											955
	4.6.8	60	140	18	53											980
250M	2	60				500	450	550					510	380	650	1020
	4.6.8	65			58
280S	2	65											580	410	720	1110
	4.6.8	75		20	67.5
280M	2	65		18	58											1150
	4.6.8	75		20	67.5
315S	2	65		18	58	600	550	660		24	6		645	530	900	1300
	4.6.8.10	80	170	22	71											1450
315M	2	65	140	18	58											1330
	4.6.8.10	80	170	22	71											1450
315L	2	65	140	18	58											1330
	4.6.8.10	80	170	22	71								710	655	1010	1450
355M	2	75	140	20	67.5	740	680	800								1640
	4.6.8.10	95	170	25	86											1670
355L	2	75	140	20	67.5											1640
	4.6.8.10	95	170	25	86											1670
